GUY WIRE AND ARMOUR RODS
| Model | Lenght (MM) | Number of Rod | Individual Diameter (MM) | Range of Conductor (MM) | Code Colour | Direction |
| DG-4542 | 625 | 3 | 2.5 | 7.36-8.24 | Red | Right |
| DG-4546 | 825 | 7 | 3 | 11.7-13.12 | Orange | Right |
| DG-4549 | 991 | 5 | 4 | 16.61-18.77 | Green | Right |
| DG-4541 | 445 | 3 | 2.18 | 5.81-6.35 | Orange | Right |
| DG-4554 | 406 | 3 | 2.18 | 4.62-5.15 | Blue | Right |
| FWDE-1107 | 890 | 7 | 2.2 | 9.8 | Orange | Right |

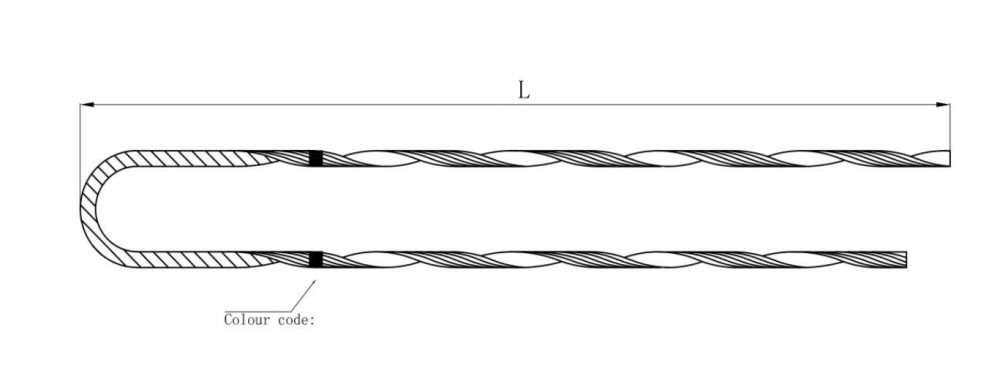

| The drawings are for reference only. We can produce according to your specifications. Please contact us. | |||||||||||
