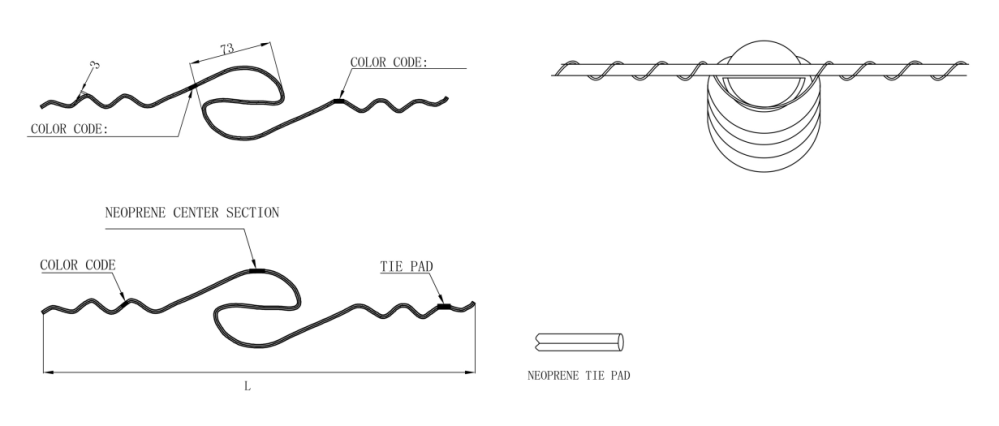

Preformed Guy Wire Type Z For Insulator 57/1-3
| Model | Lenght (MM) | Number of Rod | Individual Diameter (MM) | Range of Conductor (MM) | Code Colour | Direction |
| DWTF-1212 | 700 | 4 | 3 | 9.89-10.49 | Yellow | Right |
| DWTF-1222 | 750 | 4 | 3 | 17.93-18.97 | Brown | Right |
| The drawings are for reference only. We can produce according to your specifications. Please contact us. | |||||||||

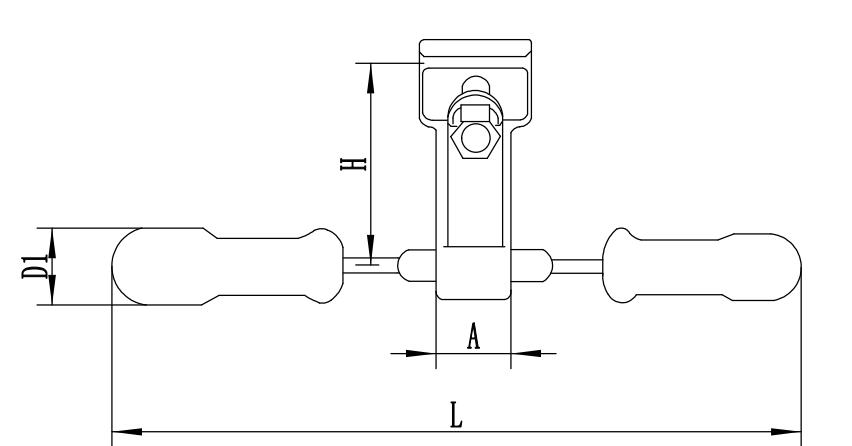

| MODEL | CONDUCTOR(MM) | L | D1 | H | A |
| FR-1 | 7-12 | 429 | 48 | 81 | 50 |
| FR-2 | 11-22 | 429 | 48 | 81 | 50 |
| FR-3 | 18-28 | 505 | 57 | 91 | 60 |
| The drawings are for reference only. We can produce according to your specifications. Please contact us. | ||||||||||
