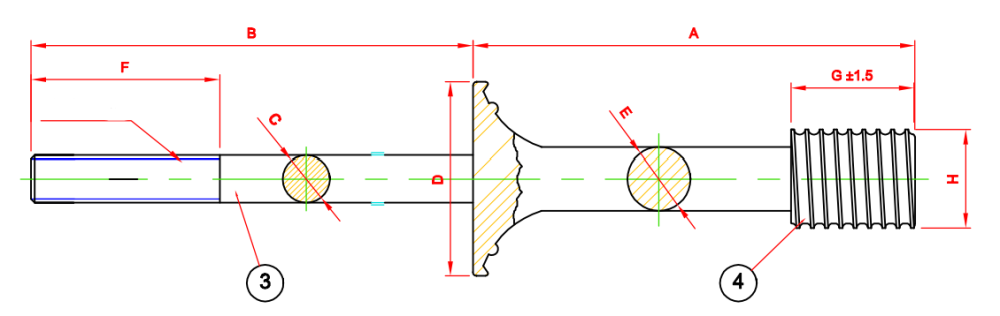

| CODE | DIMENSIONS（MM) | TYPE OF INSULATOR TO USE | ||||||||
| LENGTH | A | B | C | D | E | F | G | H | ||
| JJTPI01 | 356 | 178 | 178 | 19 | 76 | 25 | 127 | 54 | 35 | ANSI 56-2 |
| JJTPI02 | 381 | 203 | 178 | 19 | 89 | 28.6 | 127 | 54 | 35 | ANSI 56-3 |
| JJTPI03 | 432 | 254 | 178 | 19 | 89 | 28.6 | 127 | 54 | 35 | ANSI 56-4 |
| CODE | DIMENSIONS（MM) | TYPE OF INSULATOR TO USE | ||||||||
| LENGTH | A | B | C | D | E | F | G | H | ||
| JJTPI01 | 356 | 178 | 178 | 19 | 76 | 25 | 127 | 54 | 35 | ANSI 56-2 |
| JJTPI02 | 381 | 203 | 178 | 19 | 89 | 28.6 | 127 | 54 | 35 | ANSI 56-3 |
| JJTPI03 | 432 | 254 | 178 | 19 | 89 | 28.6 | 127 | 54 | 35 | ANSI 56-4 |
